| Electricity | |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Sockets used | C, E |
| Socket C |
(click for full size)
This two-wire plug is ungrounded and has two round prongs. It is popularly known as the europlug which is described in CEE 7/16. This is probably the single most widely used international plug. It will mate with any socket that accepts 4.0-4.8 mm round contacts on 19 mm centres. The plug is generally limited for use in class II applications that require 2.5 amps or less. It is, of course, unpolarised. It is commonly used in all countries of Europe except the United Kingdom and Ireland. It is also used in various parts of the developing world. Whereas type C plugs are very commonly used, this is not the case for type C sockets. This kind of socket is the older and ungrounded variant of socket types E, F, J, K and L. Nowadays most countries demand grounded sockets to be installed in new buildings. Since type C sockets are ungrounded, they are currently being phased out in many countries and replaced by type E, F, J, K or L (depending on the country). A type C plug fits perfectly into a type E, F, J, K or L socket.
Common use:
All countries of Europe except the United Kingdom, Ireland, Cyprus and Malta.
|

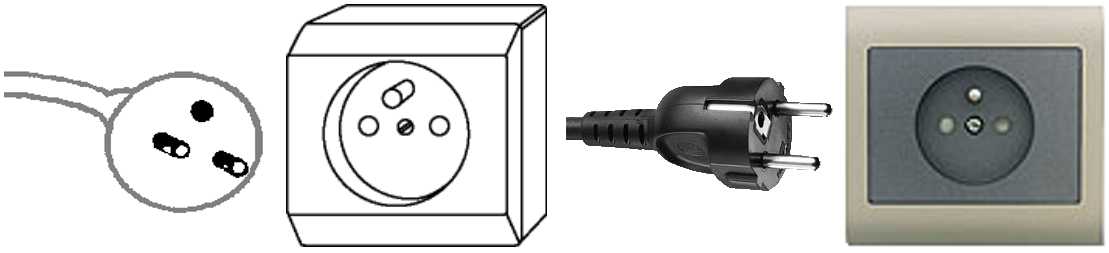

| Socket E |
(click for full size)
France, Belgium and some other countries have standardised on a socket which is different from the CEE 7/4 socket (type F) that is standard in Germany and other continental European countries. The reason for incompatibility is that grounding in the E socket is accomplished with a round male pin permanently mounted in the socket. The plug itself is similar to C except that it is round and has the addition of a female contact to accept the grounding pin in the socket. In order to bridge the differences between sockets E and F, the CEE 7/7 plug was developed: it has grounding clips on both sides to mate with the type F socket and a female contact to accept the grounding pin of the type E socket. The original type E plug, which does not have grounding clips, is no longer used, although very rarely it can still be found on some older appliances. Note that the CEE 7/7 plug is polarised when used with a type E outlet. The plug is rated at 16 amps. Above that, equipment must either be wired permanently to the mains or connected via another higher power connector such as the IEC 309 system. A type C plug fits perfectly into a type E socket.
Common use:
Primarily in France, Belgium, Poland, Slovakia, the Czech Republic, Tunisia and Morocco.
|
